Thermal Grease

The constantly increasing technical demands on electrical and electronic assemblies lead to major challenges in the area of thermal management. Due to the miniaturization of components and the higher performance of devices, component temperatures would increase significantly without countermeasures, which can lead to the failure of the entire assembly. In order to increase the longevity of electronic components, heat must therefore be conducted from the heat source (electronics) to the heat sink (e.g. heat sink). Thermally conductive and electrically insulating intermediate layer materials, so-called Thermal Interface Materials (TIMs), are used for this purpose. KERAFOL® has developed effective, uncomplicated and cost-effective solutions in this area with the KERATHERM® and KERAMOLD® product ranges. Thermal Grease is a product group that is also well-known in the consumer sector.

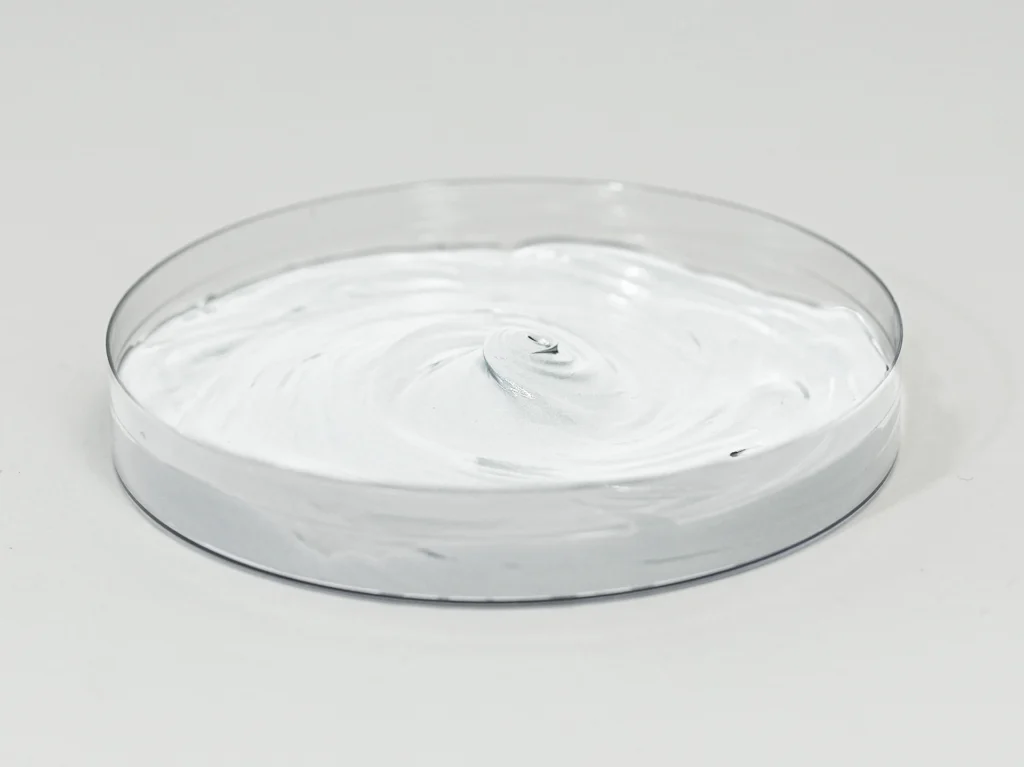

KERATHERM® KP97

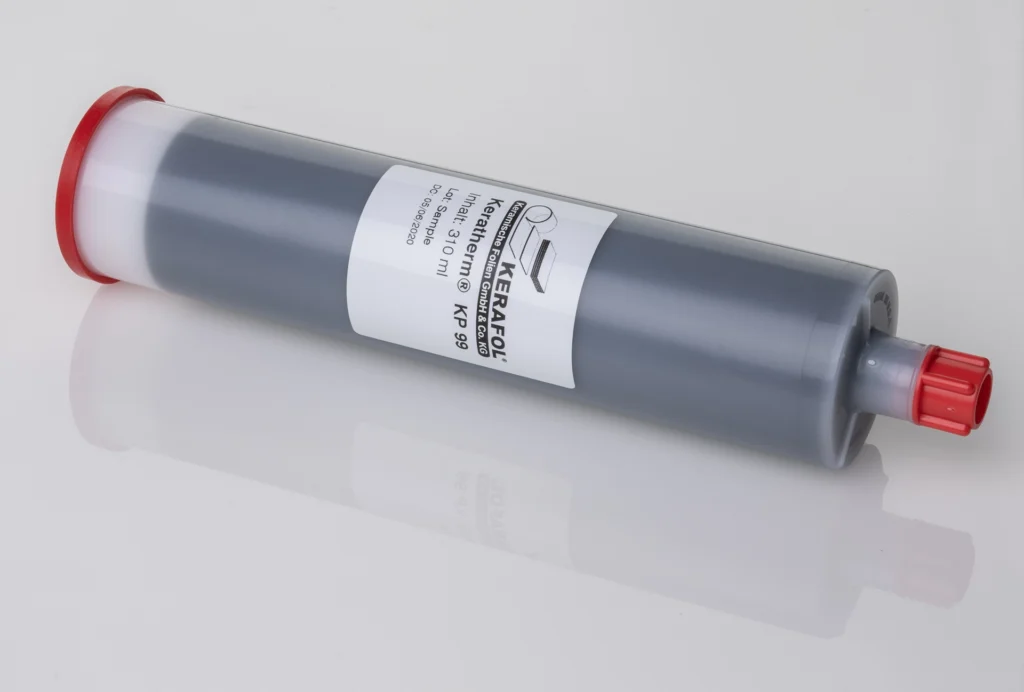

KERATHERM® KP99

What is Thermal Grease?

an explanation

Wärmeleitpasten sind thermisch leitend und nicht vernetzende 1K-Materialien, z.B. auf Basis von Silikon. Durch ihre spezielle Verfüllung können Wärmeleitpasten auf sehr dünne Schichtstärken von < 25 µm verdrückt werden. Durch diese besondere Plastizität und der geringen Schichtstärke kann damit ein unvergleichbar geringer Wärmewiderstand erzielt werden. Dies trägt maßgeblich zur enormen Kühlleistung von elektronischen Bauteilen bei.
Für alle empfindlichen Bauteile/Anwendungen, bei denen kein silikonhaltiges Produkt verwendet werden darf, verfügt KERAFOL® über silikonfreie Alternativen.

Key Facts

to the Thermal Grease from KERAFOL®

  • High thermal conductivity
  • Low thermal resistance
  • Different polymer bases possible, silicone-containing and silicone-free
  • Low layer thicknesses of approx. 25 µm possible
  • Various containers (syringe, cartridge, hobbock) and application options (dispensing, screen printing)
KERATHERM® KP99
KERATHERM® KP99

How is Thermal Grease processed?

Application

Thermal Grease from KERAFOL® are available in various containers
  • Syringes
  • Euro cartridges 310 ml
  • Semco cartridges 75 ml / 310 ml / 360 ml
  • Cans 0.5 kg / 1.0 kg cans
  • Hobbocks up to 34.5 kg

In addition to manual application, Thermal Grease can also be applied using screen printing or dispensing systems.

Further information on dispensing technology and screen printing can be found in the section Service KERAFOL®.

Advantages

of the thermally conductive pastes from KERAFOL®

  • Wide range of products for different requirement profiles
  • Wide range in terms of thermal conductivity (up to 10.0 W/mK)
  • Low layer thicknesses of approx. 25 µm
  • Easy handling and various application options (dispensing, screen printing)
  • Different polymer bases possible, silicone-containing and silicone-free
  • High availability
  • 100% Made in Germany

Delimitation

to other products

In contrast to gap filler liquids, thermal grease are non-crosslinking systems and therefore do not harden. Due to special fillers and the very thin layer thickness, thermal grease are not electrically insulating. The degree of filling and the density of greases are very high. The choice of fillers is always based on the need for easy dispensing. In terms of the gap to be bridged over a certain area, greases are a more cost-effective alternative to films, also because the material utilization is higher (e.g. no material is lost due to punching residues). This is offset by the investment costs for a dosing or screen printing system.

Produktportfolio
Thermal Management

Comparison

Thermal Grease from KERAFOL®

to the complete overview

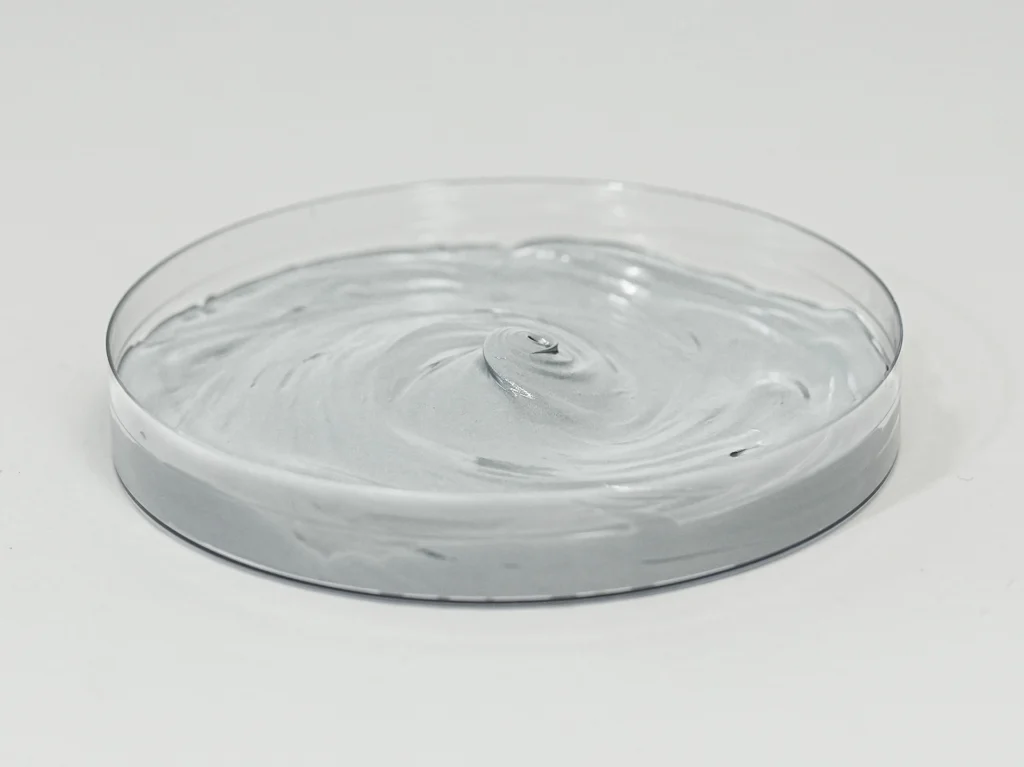

KP12

KERATHERM® Thermal Grease

  • Silicone free
  • Outstanding thermal performance
  • Easy to apply
  • Low viscosity
  • Available in different packaging forms (syringes, cartridges, cans & hobbocks)
  • Very low bond line thickness

KP14

KERATHERM® Thermal Grease

  • Silicone free
  • Outstanding thermal performance
  • Easy to apply
  • High material stability
  • Available in different packaging forms (syringes, cartridges, cans & hobbocks)
  • Very low bond line thickness

KP97

KERATHERM® Thermal Grease

  • Silicone based
  • Good price/performance ratio
  • Easy to apply
  • Available in different packaging forms (syringes, cartridges, cans & hobbocks)
  • Very low bond line thickness

KP98

KERATHERM® Thermal Grease

  • Silicone based
  • Good price/performance ratio
  • Easy to apply
  • Available in different packaging forms (syringes, cartridges, cans & hobbocks)
  • Very low bond line thickness

KP99

KERATHERM® Thermal Grease

  • Silicone based
  • Very high thermal conductivity
  • Easy to apply
  • Available in different packaging forms (syringes, cartridges, cans & hobbocks)
  • Very low bond line thickness

KP100

KERATHERM® Thermal Grease

  • Silicone based
  • Very high thermal conductivity
  • Easy to apply
  • Available in different packaging forms (syringes, cartridges, cans & hobbocks)
  • Very low bond line thickness

Applications

of Thermal Grease

  • In many power electronics applications and many other electronic assemblies
  • TO housing
  • For small component tolerances
  • CPUs, PCBs
