Ceramic Filter Discs
byKERAFOL®
What is a ceramic filter disc?
Ceramic filter discs are flat, disc-shaped filter elements made of porous, engineered ceramic. Their finely structured surface ensures the precise removal of particles, germs, and other contaminants from liquids or gases.
The disc shape was deliberately chosen because it allows for rotation during the filtration process. This movement continuously clears the filter surface of deposited particles—which increases flow rate, extends service life, and reduces cleaning effort. At the same time, the compact design provides a large active filter area in a small space.
374mm, 312mm, 152mm
KERAFOL® ceramic filter discs are used in numerous industrial sectors, such as water and wastewater treatment, environmental technology, the food and beverage industry, and chemical processes.
Benefits: high resistance to temperature and chemicals, mechanical stability, long service life, and easy regeneration. Because they can be cleaned and reused multiple times, they are a sustainable and cost-effective solution for many filtration applications.
Developed and manufactured by KERAFOL® – Ceramic Experts. Quality “Made in Germany.”
Advantages
- Sustainable – repeatedly regenerable and durable
- Precise – Filtration down to the nanometer range
- Durable – chemically and thermally resistant
Here's how it works
Filtration based on the outside-to-inside principle
The raw fluid flows along the outside of the disc. Microporous pores trap particles while allowing the fluid to pass through. The clear filtrate is collected on the inside and discharged in a controlled manner.
Materials and Construction

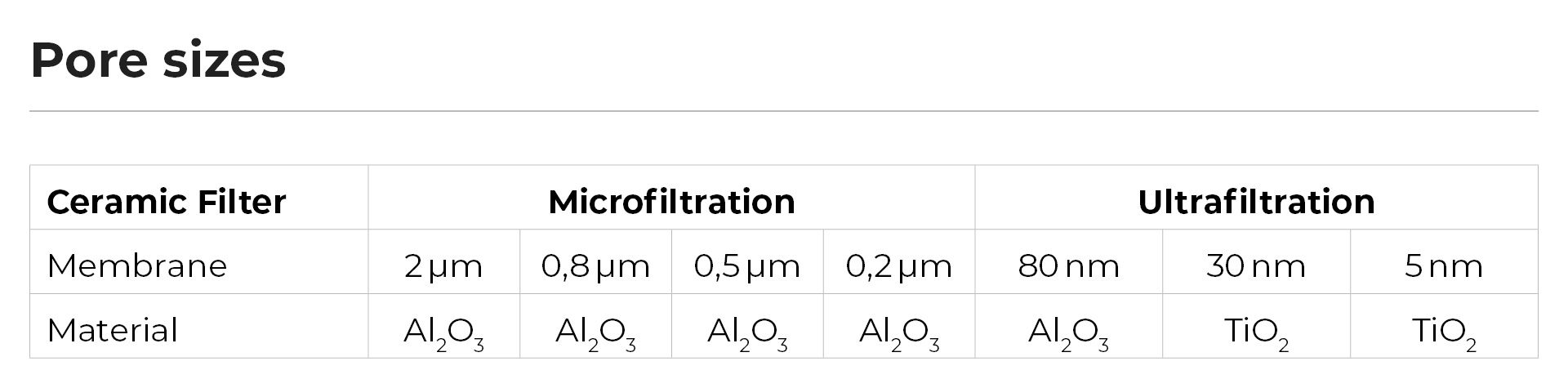

KERAFOL® manufactures ceramic filter discs made of high-purity aluminum oxide (Al₂O₃)—in various diameters and pore sizes for microfiltration and ultrafiltration. They are used in rotary filtration and dynamic cross-flow filtration (DCFF) for solid-liquid separation.

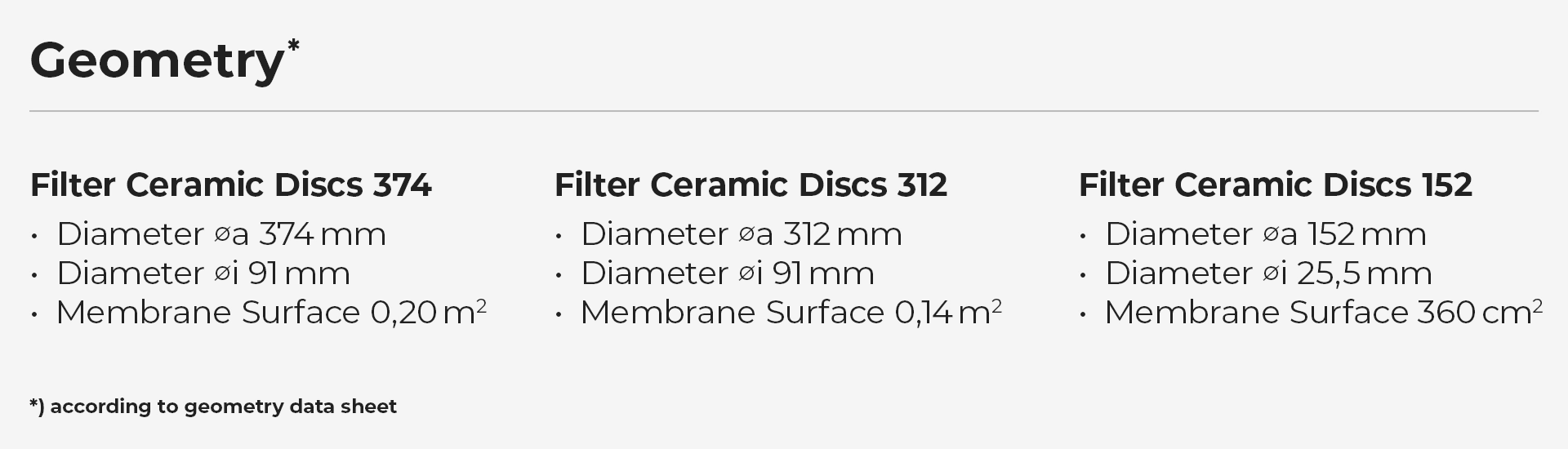

Sizes & Variants
Diameter: 374 mm, 312 mm, 152 mm (others available upon request)
Custom solutions available upon request
Filter Units
Areas of Application
Ceramic Filter Discs
- Food & Beverages: Clear juices, wine, or beer—gently filtered without additives.
- Environmental Technology: Efficient water and wastewater treatment, even with aggressive substances.
- Industrial & Ceramics: Concentration and purification of slurries, glazes, and process fluids.
- Pharmaceuticals & Medical Technology: Reliable filtration for sterile processes.
WhyKERAFOL®?
KERAFOL® has been a specialist in technical ceramics and filter solutions for decades. Our expertise makes us the partner of choice for demanding industries—with certified “Made in Germany” quality.
- Customized Solutions
- Many years of experience
- Personal Contacts
Consulting & Contact
Which filter disc is right for your process? We’ll help you with selection, integration, and operation.
Contact:
Christian Münch, M.Sc. in Physics, & Franz-Martin Fuchs, M.Eng.
Division Manager, Technical Ceramics
Phone: +49(0) 9645 – 88 610 / +49(0) 9645 – 88 430
Email: keramik@kerafol.com
Or fill out our contact form and let us know your application, desired throughput rates, or technical requirements—we’ll get back to you right away.
